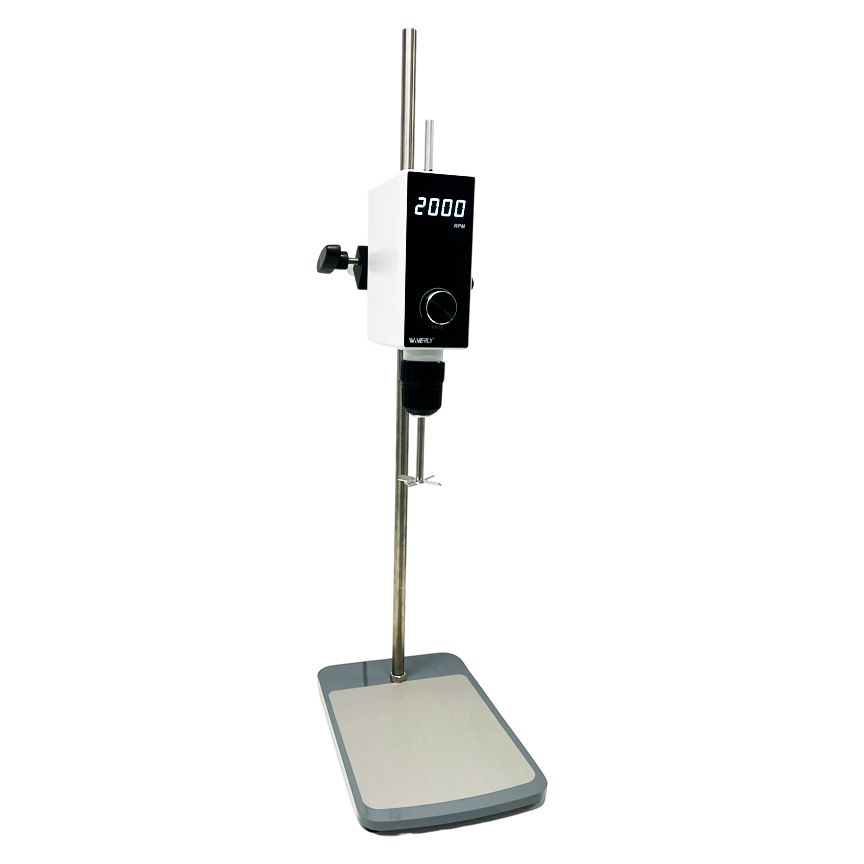

Waverly® ST1R™ Overhead Stirrer Mixer
Introducing the all-new ST1R™ Overhead Stirrer from Waverly®
We built one model to do it all — and do it better. The ST1R™ is our "super model": maximum torque, top-tier capacity, premium brushless motor for ultra-long life, and sleek digital controls — all in one beautifully engineered package. By perfecting a single design, we streamline production and pass the savings on to you, offering pro-level performance at a surprisingly competitive price.
Select Model
ST1R
More Information
Waverly® ST1R™ Overhead Stirrer Mixer

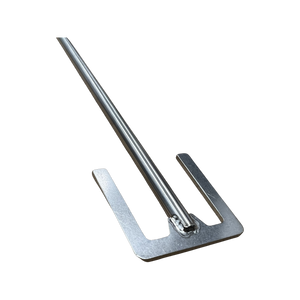

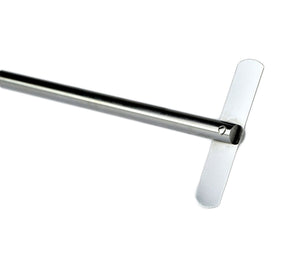

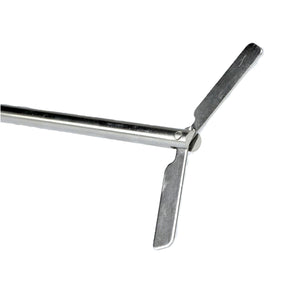

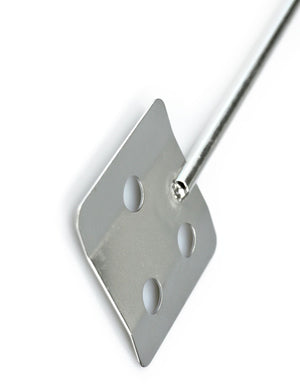

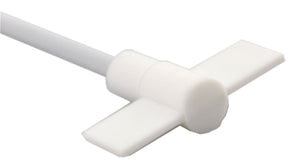

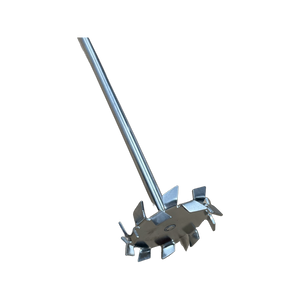

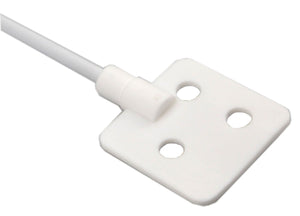

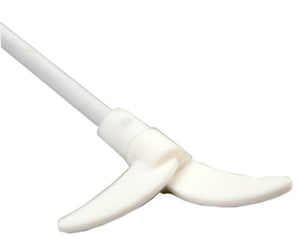

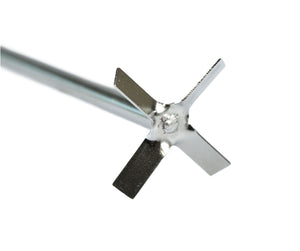

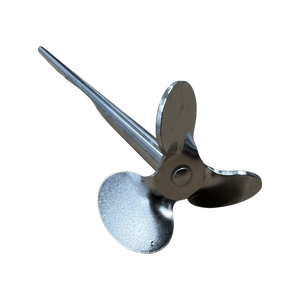

Select Stirrer (Optional)
More Information
More Information
More Information
More Information
More Information
More Information
More Information
More Information
More Information
More Information
More Information
Select Hotplate (Optional)
Questions about this product? Call us at (424) 400-2340
In stock and ready to ship in #-# business days.
Flexible payment options, including major credit cards.
Hassle-free setup. Installation guides and support included!
Details
Description
Specifications
Video

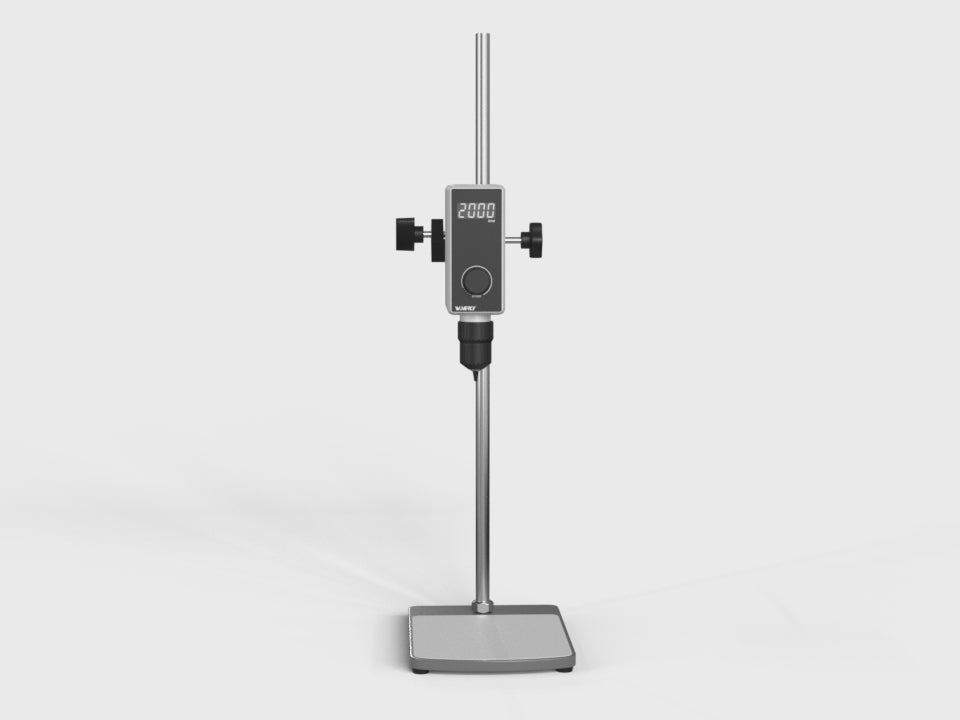

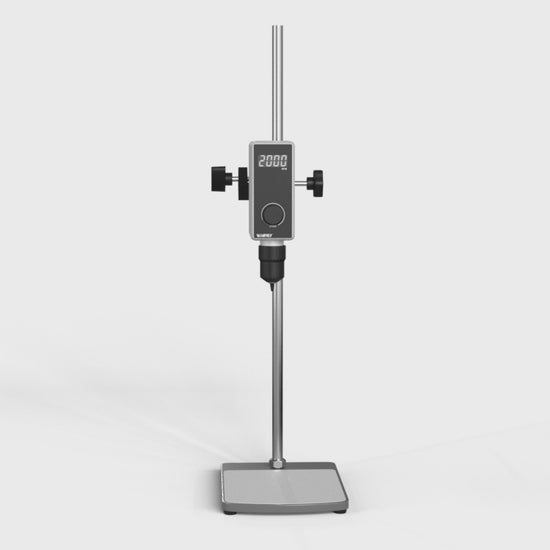

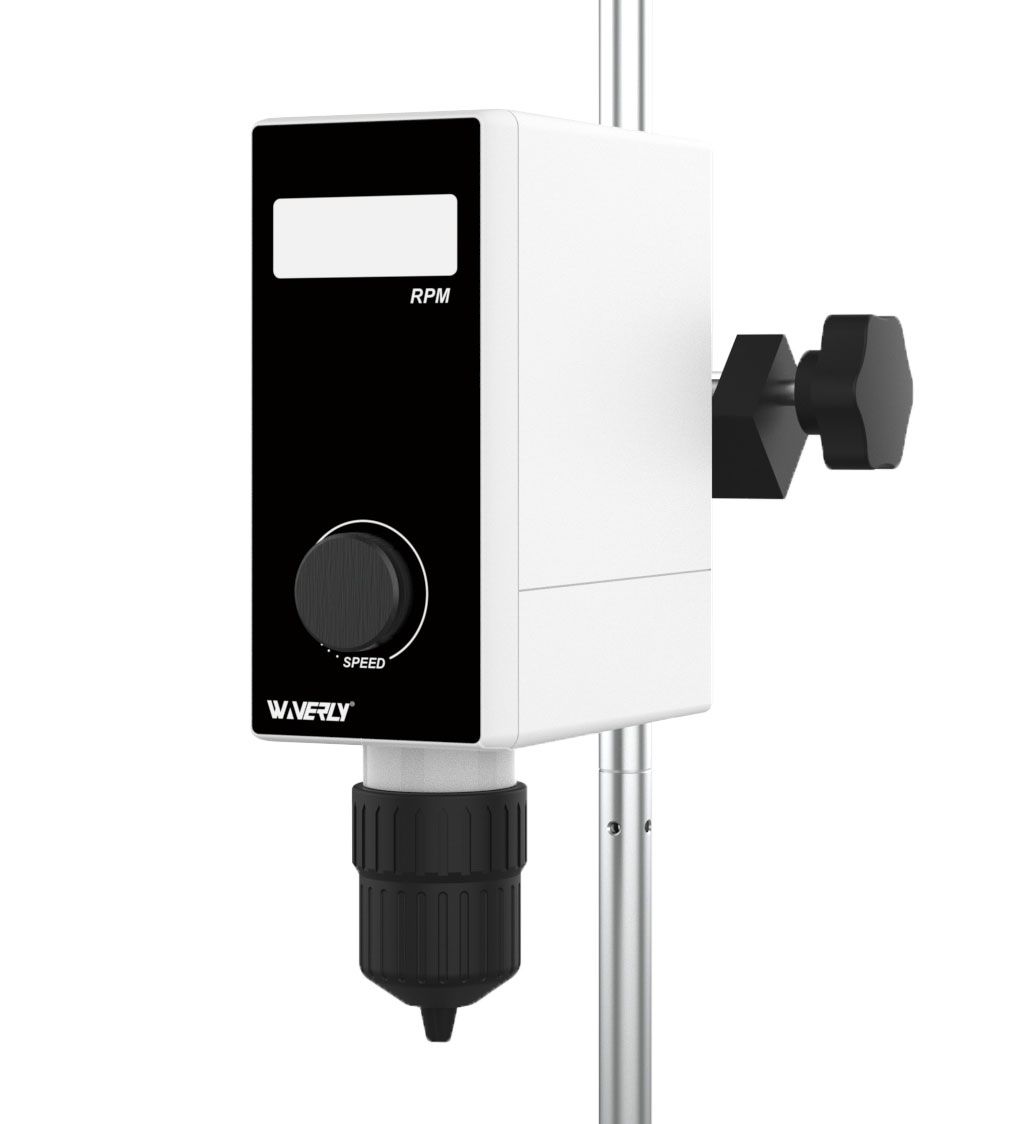

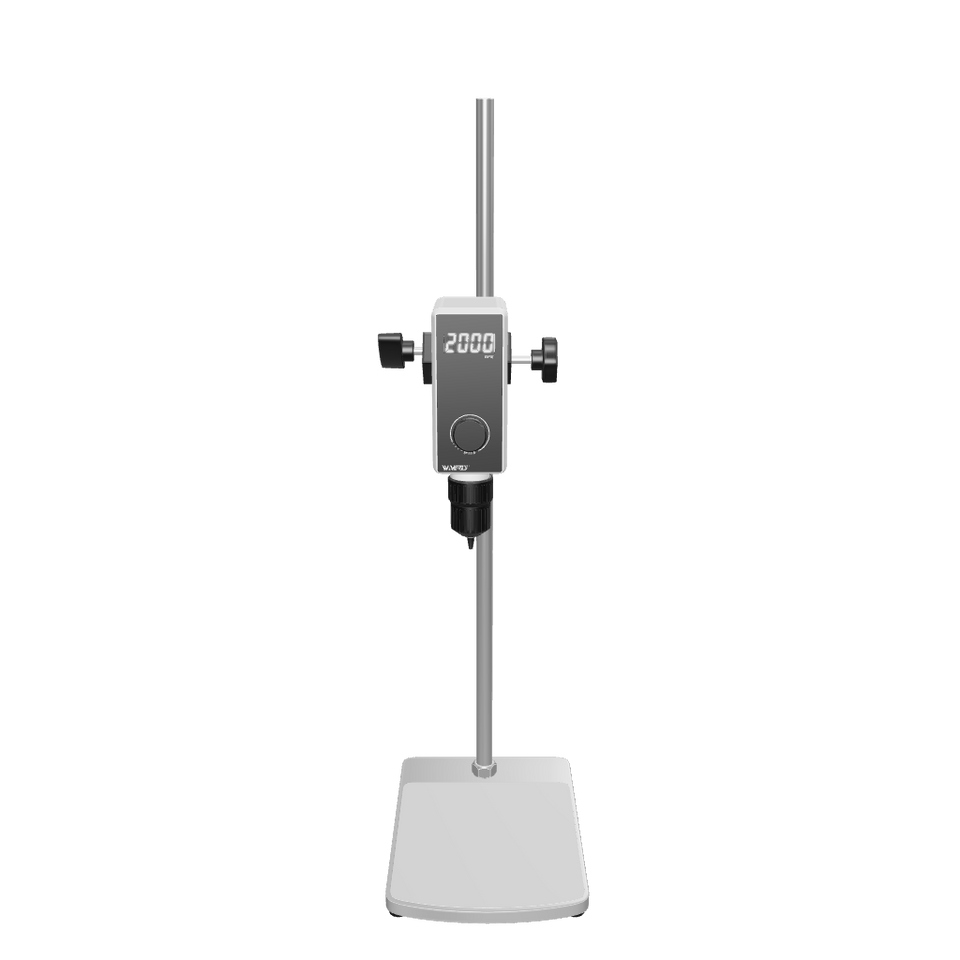

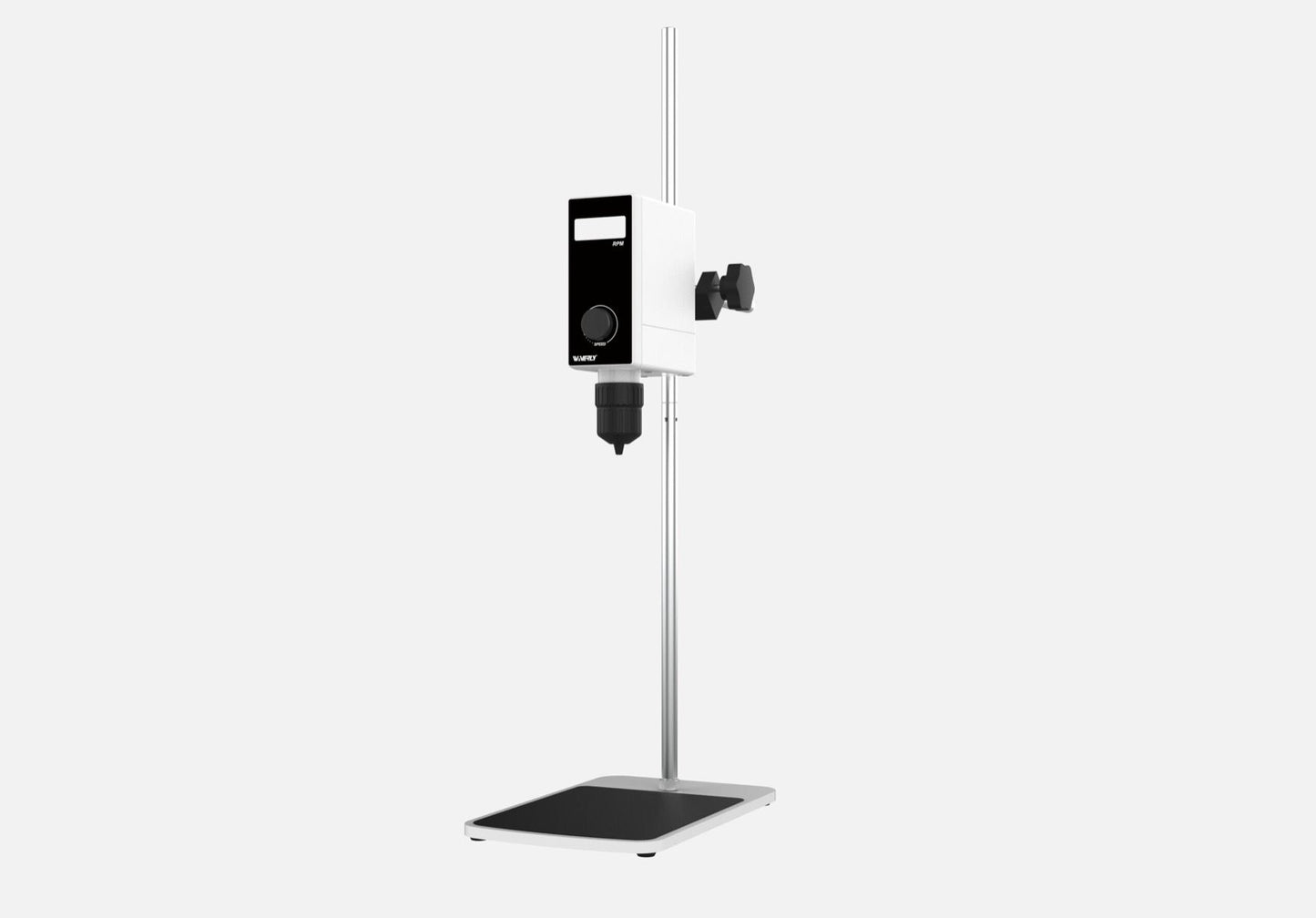

Waverly® ST1R™ Overhead Stirrer
The new overhead stirrer from Waverly® Scientific Products is a universal overhead stirrer ideal for many different applications. Perfect for stirring, mixing, and homogenizing liquids and solids, including high-viscosity substances.
Waverly® designed this stirrer for the modern laboratory. It is compact, lightweight, and features a sleek design with a sharp LED digital display covered by a tempered glass screen—like an iPhone.
We've consolidated our designs into one model only, the ST1R™, which happens to be the top model with the best specifications. By consolidating into one model, we can leverage economies of scale to offer the highest performance at a price that competes with any other brand in its class.
- Drive motor: premium maintenance-free brushless DC motor
- Max stir volume: 40L (H₂O)
- Speed range: 50 to 2000 rpm
- LED display shows both actual and set speed
- Speed automatically adjusts to viscosity changes in real time via microprocessor technology
- Through-shaft design allows shaft length adjustment and easy vessel changes between batches
- Overload protection system activates if torque exceeds stirrer limits
- Safety circuits with auto cut-off for added protection
ST1R Overhead Stirrer Specifications
| Max. stirring quantity (H₂O) | 40L |
| Motor type | Premium brushless DC motor |
| Electrical | 100-240V, 50/60 Hz |
| Power | 145W |
| Speed range (under nominal load) | 0/50-2000 rpm |
| Speed increment | Stepless, 10 rpm |
| Speed accuracy | ±1 rpm |
| Max torque (at stirrer shaft) | 40 N·cm |
| Max viscosity | 50,000 mPas |
| Speed display | LED |
| Protection class (DIN EN 60529) | IP 42 |
| Protection at overload | Yes |
| Motor protection | Yes |
| Over temperature protection | Yes |
| Chuck range diameter | 0.5–10mm |
| Permissible ambient temperature & humidity | 5–40°C, 80% |
| Dimensions (W × H × D) | 2.8 × 6.8 × 9.5 in (71 × 174 × 240 mm) |
| Weight | 5.5 lbs (2.3 kg) |
